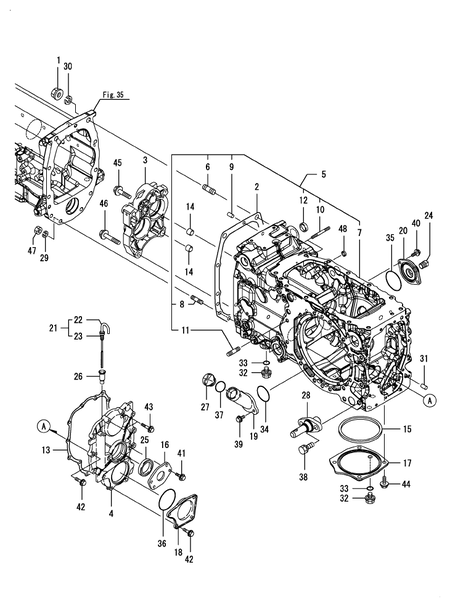

transmission case (LX4100(YANMAR))
Back to Category List
Showing 46 Results
add to quantity
NUT, M16
this part is not available for order at this time
add to quantity
GASKET, MISSION CASE
this part is not available for order at this time
add to quantity
RETAINER, BEARING
this part is not available for order at this time
add to quantity
COVER, REAR
this part is not available for order at this time
add to quantity
HOUSING ASSY, TRANS.
this part is not available for order at this time
add to quantity
STUD, M16X45
this part is not available for order at this time
add to quantity
HOUSING,TRANSMISSION
this part is not available for order at this time
add to quantity
STUD, M12X45
this part is not available for order at this time
add to quantity
PIN, PARALLEL M10X18
this part is not available for order at this time
add to quantity
STUD, M8X 80
this part is not available for order at this time
add to quantity
STUD, M12X 50
this part is not available for order at this time
add to quantity
PLUG, 30
this part is not available for order at this time
add to quantity
GASKET, REAR COVER
this part is not available for order at this time
add to quantity
COLLAR, 13X17X14
this part is not available for order at this time
add to quantity
COLLAR, 13X17X14
this part is not available for order at this time
add to quantity
PACKING, 140X3
this part is not available for order at this time
add to quantity
PLATE, OIL SEAL
this part is not available for order at this time
add to quantity
COVER, MID PTO A
this part is not available for order at this time
add to quantity
COVER, REAR COVER
this part is not available for order at this time
add to quantity
PORT, OIL
this part is not available for order at this time
add to quantity
COVER, STRAINER
this part is not available for order at this time
add to quantity
GAUGE ASSY, OIL
this part is not available for order at this time
add to quantity
GAUGE, OIL
this part is not available for order at this time
add to quantity
TUBE
this part is not available for order at this time
add to quantity
PLUG, 1-2NPT
this part is not available for order at this time
add to quantity
SEAL, OIL TC4 2609
this part is not available for order at this time
add to quantity
GUIDE, DIPSTICK
this part is not available for order at this time
add to quantity
CAP, OIL 33
this part is not available for order at this time
add to quantity
PIN, LOWER LINK
this part is not available for order at this time
add to quantity
WASHER, SPRING 12
this part is not available for order at this time
add to quantity
WASHER, SPRING 16
this part is not available for order at this time
add to quantity
PLUG, 14
this part is not available for order at this time
add to quantity
PLUG, 14
this part is not available for order at this time
add to quantity
O-RING, 1AP16.0
this part is not available for order at this time
add to quantity
O-RING, 1AP16.0
this part is not available for order at this time
add to quantity
O-RING, 1AP50.0
this part is not available for order at this time
add to quantity
O-RING, 1AG65.0
this part is not available for order at this time
add to quantity
O-RING, 1AG75.0
this part is not available for order at this time
add to quantity
O-RING, 1A24030
this part is not available for order at this time
add to quantity
BOLT, SPRING M14X 35
this part is not available for order at this time
add to quantity
BOLT, M8X 16 PLATED
this part is not available for order at this time
add to quantity
BOLT, M8X 20 PLATED
this part is not available for order at this time
add to quantity
BOLT, M8X 30 PLATED
this part is not available for order at this time
add to quantity
BOLT, M8X 30 PLATED
this part is not available for order at this time
add to quantity
BOLT, M8X 40 PLATED
this part is not available for order at this time
add to quantity
BOLT, M10X 25 PLATED
this part is not available for order at this time
add to quantity
BOLT, M12X 50 PLATED
this part is not available for order at this time
add to quantity
BOLT, M12X 65 PLATED
this part is not available for order at this time
add to quantity
NUT, M12
this part is not available for order at this time
add to quantity
PLUG, 17
this part is not available for order at this time
1
NUT, M16
198535-24120
Suggested price
$8.42
2
GASKET, MISSION CASE
198212-24140
Suggested price
$29.34
3
RETAINER, BEARING
1A7350-24160
Suggested price
$138.18
4
COVER, REAR
198218-24240
Out of Stock
5
CASE ASSY, MISSION
1A8275-24240
Out of Stock
6
STUD, M16X45
198240-24120
Out of Stock
7
CASE, TRANSMISSION
1A8275-24231
Out of Stock
8
STUD, M12X45
198240-24530
Out of Stock
9
PIN, PARALLEL M10X18
22312-100180
Suggested price
$2.08
10
STUD, M8X 80
26216-080802
Suggested price
$2.21
11
STUD, M12X 50
26218-120502
Suggested price
$8.04
12
PLUG, 30
27260-300000
Suggested price
$5.04
13
GASKET, REAR COVER
198212-24320
Suggested price
$15.46
14
COLLAR, 13X17X14
198071-24340
Out of Stock
15
D-RING, 140X3
198133-24380
Suggested price
$27.50
16
PLATE, OIL SEAL
New Part Number: 198255-24460
Old Part Number(s): 198255-24460-3, 198255-24460-1
Suggested price
$19.34
17
COVER, MID PTO A
198240-24480-1
Suggested price
$191.60
18
COVER, REAR COVER
198212-24510
Out of Stock
19
PORT, OIL
New Part Number: 198240-24690
Old Part Number(s): 198240-24690-2
Suggested price
$51.04
20
COVER, STRAINER
198240-24900-1
Suggested price
$36.57
21
GAUGE ASSY, LEVEL
1A8275-24960
Suggested price
$20.10
22
GAUGE, OIL LEVEL
1A8275-24980
Suggested price
$18.06
23
TUBE
194850-24990
Suggested price
$4.62
24
PLUG, 1-2NPT
194322-24980
Out of Stock
25
SEAL, OIL TC42609
194130-26350
Suggested price
$11.51
26
GUIDE, DIPSTICK
119860-34810
Suggested price
$35.77
27
CAP, OIL 33
194850-42500
Suggested price
$8.57
28
PIN, LOWER LINK
194640-73180
Suggested price
$144.39
29
WASHER, SPRING 12
New Part Number: 22217-120000
Old Part Number(s): 22212-120000
Minimum Sales Quantity: 10
Not for Sale Online
30
WASHER, SPRING 16
New Part Number: 22217-160000
Old Part Number(s): 22212-160000, 1A7500-74680
Minimum Sales Quantity: 10
Suggested price
$1.70 / $17.00
32
PLUG, 14
23491-140002
Suggested price
$3.32
33
O-RING, 1AP16.0
New Part Number: 24311-000160
Old Part Number(s): 24317-000160
Minimum Sales Quantity: 10
Not for Sale Online
34
O-RING, 1AP50.0
24311-000500
Minimum Sales Quantity: 10
Suggested price
$2.53 / $25.30
35
O-RING, 1AG65.0
24321-000650
Minimum Sales Quantity: 10
Suggested price
$2.91 / $29.10
36
O-RING, 1AG75.0
24321-000750
Minimum Sales Quantity: 10
Suggested price
$3.49 / $34.90
37
O-RING, 1A24030
New Part Number: 24351-240300
Old Part Number(s): 24351-020300
Suggested price
$2.21
38
BOLT, M14X 35
26013-140352
Suggested price
$3.16
39
BOLT, M8X 16 PLATED
New Part Number: 26106-080162
Old Part Number(s): 26106-080152, 26011-080162, 26107-080162
Minimum Sales Quantity: 10
Suggested price
$1.43 / $14.30
40
BOLT, M8X 20 PLATED
New Part Number: 26106-080202
Old Part Number(s): 1W0108-09003, 160610-04150
Minimum Sales Quantity: 10
Suggested price
$1.43 / $14.30
42
BOLT, M8X 30 PLATED
New Part Number: 26106-080302
Old Part Number(s): 160610-04160
Minimum Sales Quantity: 10
Not for Sale Online
43
BOLT, M8X 40 PLATED
26106-080402
Minimum Sales Quantity: 10
Suggested price
$1.63 / $16.30
44
BOLT, M10X 25 PLATED
26106-100252
Minimum Sales Quantity: 10
Suggested price
$1.37 / $13.70
45
BOLT, M12X 50 PLATED
26106-120502
Minimum Sales Quantity: 10
Suggested price
$2.51 / $25.10
46
BOLT, M12X 65 PLATED
26106-120652
Out of Stock
47
NUT, M12
New Part Number: 26716-120002
Old Part Number(s): 26717-120002, 26711-120002, 26716-120000, 26726-120002
Minimum Sales Quantity: 10
Not for Sale Online
48
PLUG, 17
27260-170000
Suggested price
$5.11
