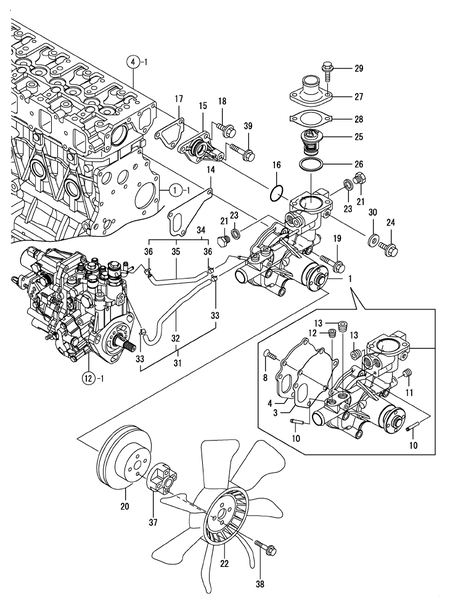

cooling water system (4TNV88-XAT)
Back to Category List
Showing 33 Results
add to quantity
PUMP ASSY, CW
this part is not available for order at this time
add to quantity
GASKET, WATER PUMP
this part is not available for order at this time
add to quantity
PLATE
this part is not available for order at this time
add to quantity
SCREW
this part is not available for order at this time
add to quantity
JOINT, PIPE
this part is not available for order at this time
add to quantity
JOINT, PIPE
this part is not available for order at this time
add to quantity
PLUG, R01
this part is not available for order at this time
add to quantity
PLUG, R02
this part is not available for order at this time
add to quantity
PLUG, R03
this part is not available for order at this time
add to quantity
PLUG, R03
this part is not available for order at this time
add to quantity
GASKET, WATER PUMP
this part is not available for order at this time
add to quantity
JOINT
this part is not available for order at this time
add to quantity
O-RING, G30
this part is not available for order at this time
add to quantity
GASKET
this part is not available for order at this time
add to quantity
BOLT, M8X 16 PLATED
this part is not available for order at this time
add to quantity
BOLT, M8X 60 PLATED
this part is not available for order at this time
add to quantity
V-PULLEY, D=110
this part is not available for order at this time
add to quantity
PLUG, M16
this part is not available for order at this time
add to quantity
PLUG, M16
this part is not available for order at this time
add to quantity
FAN, COOLING D380
this part is not available for order at this time
add to quantity
GASKET, 16
this part is not available for order at this time
add to quantity
GASKET, 16
this part is not available for order at this time
add to quantity
BOLT, M8X 12 PLATED
this part is not available for order at this time
add to quantity
THERMOSTAT, 71
this part is not available for order at this time
add to quantity
GASKET, THERMOSTAT
this part is not available for order at this time
add to quantity
COVER, THERMOSTAT
this part is not available for order at this time
add to quantity
GASKET
this part is not available for order at this time
add to quantity
BOLT, M8X 22 PLATED
this part is not available for order at this time
add to quantity
GASKET, 8X1.0
this part is not available for order at this time
add to quantity
PIPE, WATER
this part is not available for order at this time
add to quantity
HOSE ASSY, WATER A
this part is not available for order at this time
add to quantity
CLIP, HOSE 9
this part is not available for order at this time
add to quantity
CLIP, HOSE 9
this part is not available for order at this time
add to quantity
PIPE, WATER
this part is not available for order at this time
add to quantity
HOSE ASSY, WATER B
this part is not available for order at this time
add to quantity
SPACER, FAN
this part is not available for order at this time
add to quantity
BOLT, M6X 40 PLATED
this part is not available for order at this time
add to quantity
BOLT, M8X 45 PLATED
this part is not available for order at this time
Select your preferred dealer:
Products will be delivered from Yanmar, not the dealer.
1
PUMP ASSY, CW
New Part Number: 129004-42002
Old Part Number(s): 129004-42001, 129004-42000
Suggested price
$459.45
3
GASKET, WATER PUMP
129100-42051
Suggested price
$10.49
4
PLATE, PUMP
New Part Number: 129100-42121
Old Part Number(s): 129100-42120
Suggested price
$51.24
8
SCREW
121850-42410
Out of Stock
10
JOINT, PIPE
New Part Number: 119802-49113
Old Part Number(s): 119802-49112
Suggested price
$15.62
11
PLUG, R01
23876-010000
Suggested price
$2.82
12
PLUG, R02
23876-020000
Suggested price
$2.34
13
PLUG, R3/8
129916-49740
Suggested price
$8.90
14
GASKET, WATER PUMP
New Part Number: 129486-42021
Old Part Number(s): 129100-42020
Suggested price
$4.32
15
JOINT, WATER PIPE
129004-42040
Suggested price
$20.46
16
O-RING, G30
129486-42140
Suggested price
$2.45
17
GASKET, THERMOSTAT
New Part Number: 124395-49840
Old Part Number(s): 129100-49840
Suggested price
$2.16
18
BOLT, M8X 16 PLATED
New Part Number: 26106-080162
Old Part Number(s): 26106-080152, 26011-080162, 26107-080162
Minimum Sales Quantity: 10
Suggested price
$1.37 / $13.70
19
BOLT, M8X 60 PLATED
New Part Number: 26106-080602
Old Part Number(s): 160610-04190
Minimum Sales Quantity: 10
Suggested price
$1.92 / $19.20
20
V-PULLEY, PUMP
129403-42380
Suggested price
$19.67
21
PLUG, M16
121450-42450
Suggested price
$6.42
22
FAN, COOLING D=380
129655-44740
Suggested price
$52.04
23
GASKET, 16
124465-44950
Suggested price
$2.12
24
BOLT, M8X 12 PLATED
26106-080122
Minimum Sales Quantity: 10
Not for Sale Online
25
THERMOSTAT, 71C
New Part Number: 129155-49801
Old Part Number(s): 129155-49800
Suggested price
$39.11
26
GASKET, THERMOSTAT
New Part Number: 129150-49811
Old Part Number(s): 129470-49810, 129150-49810
Suggested price
$2.55
27
COVER, THERMOSTAT
New Part Number: 129350-49530-9
Old Part Number(s): 129350-49530-1, 129350-49530
Not for Sale Online
28
GASKET, COVER
New Part Number: 129795-49551
Old Part Number(s): 129795-49550, 129470-49550
Suggested price
$3.79
29
BOLT, M8X 22 PLATED
26106-080222
Minimum Sales Quantity: 10
Not for Sale Online
30
GASKET, 8X1.0
New Part Number: 23414-080000
Old Part Number(s): 1A1040-28900, 123672-55760
Minimum Sales Quantity: 10
Not for Sale Online
31
HOSE ASSY, WATER A
New Part Number: 129263-49610
Old Part Number(s): 129263-49710
Suggested price
$43.53
32
HOSE ASSY, WATER A
New Part Number: 129263-49610
Old Part Number(s): 129263-49710
Suggested price
$43.53
33
CLAMP, HOSE 9
124722-59050
Not for Sale Online
34
HOSE ASSY, WATER B
New Part Number: 129263-49620
Old Part Number(s): 129263-49720
Suggested price
$30.52
35
HOSE ASSY, WATER B
New Part Number: 129263-49620
Old Part Number(s): 129263-49720
Suggested price
$30.52
37
SPACER, FAN 25MM
171353-44760
Suggested price
$40.58
38
BOLT, M6X 40 PLATED
New Part Number: 26106-060402
Old Part Number(s): X21142867
Minimum Sales Quantity: 10
Not for Sale Online
39
BOLT, M8X 45 PLATED
26106-080452
Minimum Sales Quantity: 10
Suggested price
$1.57 / $15.70
