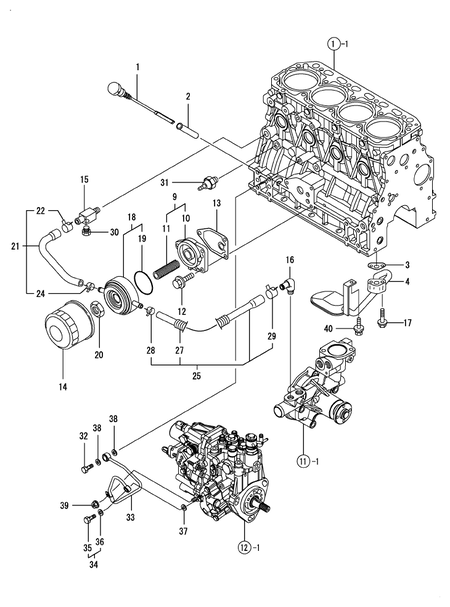

lub.oil system (4TNV88-XAT)
Back to Category List
Showing 32 Results
add to quantity
DIPSTICK, OIL
this part is not available for order at this time
add to quantity
GUIDE, DIPSTICK
this part is not available for order at this time
add to quantity
GASKET
this part is not available for order at this time
add to quantity
PIPE ASSY, OIL INLET
this part is not available for order at this time
add to quantity
BRACKET ASSY, FILTER
this part is not available for order at this time
add to quantity
BRACKET, FILTER
this part is not available for order at this time
add to quantity
STUD, L=67
this part is not available for order at this time
add to quantity
BOLT, M8X 20 PLATED
this part is not available for order at this time
add to quantity
GASKET
this part is not available for order at this time
add to quantity
FILTER 80X80L
this part is not available for order at this time
add to quantity
JOINT
this part is not available for order at this time
add to quantity
ELBOW, PT1/4
this part is not available for order at this time
add to quantity
BOLT, M8X 35 PLATED
this part is not available for order at this time
add to quantity
COOLER ASSY, OIL
this part is not available for order at this time
add to quantity
O-RING
this part is not available for order at this time
add to quantity
NUT, OIL COOLER
this part is not available for order at this time
add to quantity
PIPE ASSY, WATER
this part is not available for order at this time
add to quantity
CLIP, HOSE 18.5
this part is not available for order at this time
add to quantity
CLAMP, 15
this part is not available for order at this time
add to quantity
PIPE ASSY, WATER
this part is not available for order at this time
add to quantity
TUBE, CORRUGATED
this part is not available for order at this time
add to quantity
CLAMP, 18
this part is not available for order at this time
add to quantity
PLUG, DRAIN
this part is not available for order at this time
add to quantity
SWITCH, 0.5KG
this part is not available for order at this time
add to quantity
BOLT, PIPE JOINT M10
this part is not available for order at this time
add to quantity
PIPE ASSY, OIL
this part is not available for order at this time
add to quantity
BOLT ASSY, JOINT M8
this part is not available for order at this time
add to quantity
BOLT, JOINT 3
this part is not available for order at this time
add to quantity
WASHER, SEAL 6
this part is not available for order at this time
add to quantity
WASHER, SEAL 10
this part is not available for order at this time
add to quantity
WASHER, SEAL 10
this part is not available for order at this time
add to quantity
NUT, M6
this part is not available for order at this time
add to quantity
BOLT, M8X 16
this part is not available for order at this time
Select your preferred dealer:
Products will be delivered from Yanmar, not the dealer.
1
DIPSTICK, OIL
129457-34810
Out of Stock
2
GUIDE, DIPSTICK
121520-34810
Suggested price
$8.32
3
GASKET, INLET PIPE
New Part Number: 129150-35042
Old Part Number(s): 129150-35040, 129150-35041
Suggested price
$2.45
4
PIPE ASSY, OIL INLET
129550-35090
Suggested price
$49.30
9
BRACKET ASSY, FILTER
New Part Number: 129006-35100-9
Old Part Number(s): 129006-35100
Not for Sale Online
10
BRACKET, FILTER
119802-35110
Not for Sale Online
11
STUD, M20X67
129417-35150
Suggested price
$16.88
12
BOLT, M8X 20 PLATED
New Part Number: 26106-080202
Old Part Number(s): 1W0108-09003, 160610-04150
Minimum Sales Quantity: 10
Suggested price
$1.37 / $13.70
13
GASKET, BRACKET
New Part Number: 129150-35111
Old Part Number(s): 129150-35110
Suggested price
$2.82
14
FILTER ASSY, D80X80L
New Part Number: 129150-35153
Old Part Number(s): 129150-35151, 129150-35150, 129150-35152, 129150-35160
Suggested price
$9.59
15
JOINT, R02
129006-44480
Suggested price
$64.00
16
ELBOW, PT1/4
New Part Number: 129103-49301
Old Part Number(s): 129103-49300
Suggested price
$39.78
17
BOLT, M8X 35 PLATED
26106-080352
Minimum Sales Quantity: 10
Suggested price
$1.57 / $15.70
18
COOLER ASSY, OIL
New Part Number: 129508-33010
Old Part Number(s): 129508-33030
Not for Sale Online
19
O-RING
129508-33050
Suggested price
$17.30
20
NUT, OIL COOLER
New Part Number: 129417-33111
Old Part Number(s): 129417-33110
Suggested price
$21.11
21
HOSE ASSY, COOLER IN
129508-49030
Suggested price
$39.03
22
CLAMP, HOSE 18.5
New Part Number: 171008-03990
Old Part Number(s): 23080-019000
Suggested price
$2.75
24
CLAMP, 15
23080-015000
Suggested price
$5.28
25
HOSE ASSY,COOLER OUT
129508-49040
Suggested price
$37.07
27
TUBE, CORRUGATED 19
119940-59130
Suggested price
$39.27
29
CLAMP, 18
23080-018000
Suggested price
$3.59
30
PLUG, DRAIN R1/4
171056-49120
Suggested price
$18.82
31
SWITCH, HYDRAULIC
New Part Number: 114250-39450
Old Part Number(s): 124160-39451, 124160-39450
Suggested price
$11.97
32
BOLT, PIPE JOINT M10
124160-39140
Suggested price
$5.22
33
PIPE ASSY, OIL
119802-39450
Suggested price
$52.26
34
BOLT ASSY, JOINT M8
129005-59830
Suggested price
$4.32
35
BOLT, JOINT 3
New Part Number: 23857-030000
Old Part Number(s): 23851-030000
Not for Sale Online
36
WASHER, SEAL 8
New Part Number: 22190-080002
Old Part Number(s): 43400-500410, 194310-24240
Minimum Sales Quantity: 10
Not for Sale Online
38
WASHER, SEAL 10
New Part Number: 22190-100002
Old Part Number(s): 43400-500430
Minimum Sales Quantity: 10
Not for Sale Online
39
NUT, M6
New Part Number: 26366-060002
Old Part Number(s): 26367-060002, 160260-01800, 26337-060002
Minimum Sales Quantity: 10
Not for Sale Online
40
BOLT, M8X 16
26014-080162
Minimum Sales Quantity: 10
Suggested price
$1.37 / $13.70
