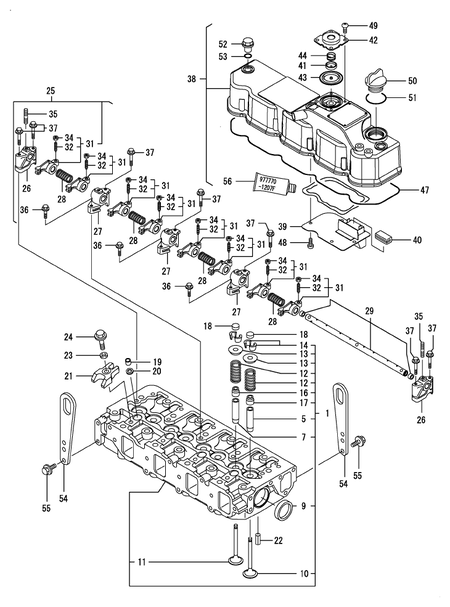

cylinder head & bonnet (4TNV88-XAT)
Back to Category List
Showing 45 Results
add to quantity
HEAD ASSY, CYLINDER
this part is not available for order at this time
add to quantity
GUIDE, VALVE
this part is not available for order at this time
add to quantity
GUIDE, VALVE
this part is not available for order at this time
add to quantity
PLUG, 40
this part is not available for order at this time
add to quantity
VALVE, INTAKE
this part is not available for order at this time
add to quantity
VALVE, EXHAUST
this part is not available for order at this time
add to quantity
SPRING, VALVE
this part is not available for order at this time
add to quantity
SPRING, VALVE
this part is not available for order at this time
add to quantity
RETAINER, SPRING
this part is not available for order at this time
add to quantity
RETAINER, SPRING
this part is not available for order at this time
add to quantity
COTTER, 8
this part is not available for order at this time
add to quantity
SEAL, VALVE STEM
this part is not available for order at this time
add to quantity
SEAL, VALVE STEM
this part is not available for order at this time
add to quantity
CAP, VALVE
this part is not available for order at this time
add to quantity
CAP, VALVE
this part is not available for order at this time
add to quantity
PROTECTOR, NOZZLE
this part is not available for order at this time
add to quantity
SEAT, NOZZLE
this part is not available for order at this time
add to quantity
RETAINER, NOZZLE
this part is not available for order at this time
add to quantity
PIN, SPRING 6.0X12
this part is not available for order at this time
add to quantity
WASHER, INJECTOR
this part is not available for order at this time
add to quantity
BOLT, M8X 35 PLATED
this part is not available for order at this time
add to quantity
SHAFT ASSY, ROCKER
this part is not available for order at this time
add to quantity
SUPPORT, ROCKER ARM
this part is not available for order at this time
add to quantity
SUPPORT, ROCKER ARM
this part is not available for order at this time
add to quantity
SUPPORT, ROCKER ARM
this part is not available for order at this time
add to quantity
SUPPORT, ROCKER ARM
this part is not available for order at this time
add to quantity
SUPPORT, ROCKER ARM
this part is not available for order at this time
add to quantity
SPRING
this part is not available for order at this time
add to quantity
SPRING
this part is not available for order at this time
add to quantity
SPRING
this part is not available for order at this time
add to quantity
SPRING
this part is not available for order at this time
add to quantity
SHAFT, ROCKER ARM
this part is not available for order at this time
add to quantity
ARM, ROCKER
this part is not available for order at this time
add to quantity
ARM, ROCKER
this part is not available for order at this time
add to quantity
ARM, ROCKER
this part is not available for order at this time
add to quantity
ARM, ROCKER
this part is not available for order at this time
add to quantity
ARM, ROCKER
this part is not available for order at this time
add to quantity
ARM, ROCKER
this part is not available for order at this time
add to quantity
ARM, ROCKER
this part is not available for order at this time
add to quantity
ARM, ROCKER
this part is not available for order at this time
add to quantity
SCREW, VALVE ADJUST
this part is not available for order at this time
add to quantity
SCREW, VALVE ADJUST
this part is not available for order at this time
add to quantity
SCREW, VALVE ADJUST
this part is not available for order at this time
add to quantity
SCREW, VALVE ADJUST
this part is not available for order at this time
add to quantity
SCREW, VALVE ADJUST
this part is not available for order at this time
add to quantity
SCREW, VALVE ADJUST
this part is not available for order at this time
add to quantity
SCREW, VALVE ADJUST
this part is not available for order at this time
add to quantity
SCREW, VALVE ADJUST
this part is not available for order at this time
add to quantity
NUT, M8
this part is not available for order at this time
add to quantity
NUT, M8
this part is not available for order at this time
add to quantity
NUT, M8
this part is not available for order at this time
add to quantity
NUT, M8
this part is not available for order at this time
add to quantity
NUT, M8
this part is not available for order at this time
add to quantity
NUT, M8
this part is not available for order at this time
add to quantity
NUT, M8
this part is not available for order at this time
add to quantity
NUT, M8
this part is not available for order at this time
add to quantity
STUD, M8X 18
this part is not available for order at this time
add to quantity
STUD, M8X 18
this part is not available for order at this time
add to quantity
BOLT, M8X 25 PLATED
this part is not available for order at this time
add to quantity
BOLT, M8X 25 PLATED
this part is not available for order at this time
add to quantity
BOLT, M8X 25 PLATED
this part is not available for order at this time
add to quantity
BOLT, M8X 50 PLATED
this part is not available for order at this time
add to quantity
BOLT, M8X 50 PLATED
this part is not available for order at this time
add to quantity
BOLT, M8X 50 PLATED
this part is not available for order at this time
add to quantity
BOLT, M8X 50 PLATED
this part is not available for order at this time
add to quantity
BOLT, M8X 50 PLATED
this part is not available for order at this time
add to quantity
BOLT, M8X 50 PLATED
this part is not available for order at this time
add to quantity
BONNET ASSY, HEAD
this part is not available for order at this time
add to quantity
PLATE
this part is not available for order at this time
add to quantity
BAFFLE, BREATHER
this part is not available for order at this time
add to quantity
PLATE
this part is not available for order at this time
add to quantity
COVER, DIAPHRAGM
this part is not available for order at this time
add to quantity
DIAPHRAGM
this part is not available for order at this time
add to quantity
SPRING, DIAPHRAGM
this part is not available for order at this time
add to quantity
GASKET, BONNET
this part is not available for order at this time
add to quantity
SCREW, 5X10
this part is not available for order at this time
add to quantity
COVER, FILLER
this part is not available for order at this time
add to quantity
O-RING, 1AP32.0
this part is not available for order at this time
add to quantity
KNOB
this part is not available for order at this time
add to quantity
O-RING, 1AP12.0
this part is not available for order at this time
add to quantity
LIFTER
this part is not available for order at this time
add to quantity
LIFTER
this part is not available for order at this time
add to quantity
BOLT, M8X 16 PLATED
this part is not available for order at this time
add to quantity
BOLT, M8X 16 PLATED
this part is not available for order at this time
add to quantity
GASKET, LIQUID
this part is not available for order at this time
Select your preferred dealer:
Products will be delivered from Yanmar, not the dealer.
1
HEAD ASSY, CYLINDER
129601-11700
Suggested price
$2,565.10
5
GUIDE, VALVE
New Part Number: 120130-11860
Old Part Number(s): 120130-11160, 124450-11160, 129150-11160, 124450-11800, 124450-11161
Suggested price
$25.21
7
GUIDE, VALVE
New Part Number: 129150-11810
Old Part Number(s): 124450-11810, 124450-11170, 124450-11171, 129150-11170, 129300-11170, 120150-11810
Suggested price
$9.79
9
PLUG, 40
27241-400000
Suggested price
$3.92
10
VALVE, INTAKE
New Part Number: 129004-11130
Old Part Number(s): 129004-11101, 129004-11100
Suggested price
$28.32
11
VALVE, EXHAUST
New Part Number: 129100-11112
Old Part Number(s): 129100-11110, 129100-11111
Suggested price
$25.64
12
SPRING, VALVE
129795-11120
Suggested price
$8.10
13
RETAINER, SPRING
129795-11180
Suggested price
$16.10
14
COTTER, 8
New Part Number: 27310-080001
Old Part Number(s): 103338-11190, 27310-080000
Minimum Sales Quantity: 5
Suggested price
$6.34 / $31.70
16
SEAL, VALVE STEM
121400-11340
Suggested price
$5.28
17
SEAL, VALVE STEM
124460-11340
Suggested price
$5.28
18
CAP, VALVE
129150-11370
Suggested price
$4.35
19
PROTECTOR, NOZZLE
119802-11870
Not for Sale Online
20
SEAT, NOZZLE
119625-11880
Not for Sale Online
21
RETAINER, NOZZLE
129004-11900
Out of Stock
22
PIN, SPRING 6.0X12
New Part Number: 22351-060012
Old Part Number(s): 105300-11330
Minimum Sales Quantity: 10
Suggested price
$1.57 / $15.70
23
WASHER, INJECTOR
120270-54410
Suggested price
$6.12
24
BOLT, M8X 35 PLATED
26106-080352
Minimum Sales Quantity: 10
Suggested price
$1.57 / $15.70
25
SHAFT ASSY, ROCKER
129601-11241
Suggested price
$678.10
26
SUPPORT, ROCKER ARM
119802-11260
Suggested price
$41.39
27
SUPPORT, ROCKER ARM
119802-11270
Suggested price
$41.39
28
SPRING, SHAFT
129150-11280
Suggested price
$7.34
29
SHAFT, ROCKER ARM
129601-11251
Out of Stock
31
ARM ASSY, ROCKER
129004-11650
Suggested price
$51.24
32
SCREW, VALVE ADJUST
129150-11230
Suggested price
$9.49
34
NUT, M8XP1.0
129150-11750
Suggested price
$2.69
35
STUD, M8X 18
New Part Number: 26226-080182
Old Part Number(s): 119802-11280, 160890-04330
Suggested price
$1.57
36
BOLT, M8X 25 PLATED
New Part Number: 26106-080252
Old Part Number(s): 1W0108-09013, 26011-080252
Minimum Sales Quantity: 10
Not for Sale Online
37
BOLT, M8X 50 PLATED
26106-080502
Minimum Sales Quantity: 10
Suggested price
$1.71 / $17.10
38
BONNET ASSY, HEAD
New Part Number: 129601-11350-9
Old Part Number(s): 129601-11350
Not for Sale Online
39
PLATE, BAFFLE
129004-03010
Out of Stock
40
BAFFLE, BREATHER
129150-03070
Suggested price
$4.69
41
PLATE, DIAPHRAGM
119802-03110
Suggested price
$6.55
42
COVER, DIAPHRAGM
New Part Number: 119802-03121
Old Part Number(s): 119802-03120
Suggested price
$23.48
43
DIAPHRAGM, BREATHER
119802-03130
Suggested price
$16.56
44
SPRING, DIAPHRAGM
New Part Number: 119802-03141
Old Part Number(s): 119802-03140
Suggested price
$1.96
47
GASKET, BONNET
129601-11310
Suggested price
$38.29
48
SCREW, 5X10
New Part Number: 22857-500100
Old Part Number(s): 22857-050100
Minimum Sales Quantity: 10
Suggested price
$1.37 / $13.70
50
CAP, FILLER
New Part Number: 124160-01751
Old Part Number(s): 124160-01750, 124722-11730
Suggested price
$9.49
51
O-RING, 1AP32.0
24311-000320
Minimum Sales Quantity: 10
Suggested price
$2.12 / $21.20
52
KNOB, BONNET
124160-11360
Suggested price
$5.67
53
O-RING, 1AP12.0
New Part Number: 24311-000120
Old Part Number(s): X0580121073
Minimum Sales Quantity: 10
Not for Sale Online
54
LIFTER, ENGINE
129900-07900
Suggested price
$7.63
55
BOLT, M8X 16 PLATED
New Part Number: 26106-080162
Old Part Number(s): 26106-080152, 26011-080162, 26107-080162
Minimum Sales Quantity: 10
Suggested price
$1.37 / $13.70
56
GASKET, LIQUID
New Part Number: TB1207FC
Old Part Number(s): 194855-24020, 977770-1207F, 977770-01212
Not for Sale Online
