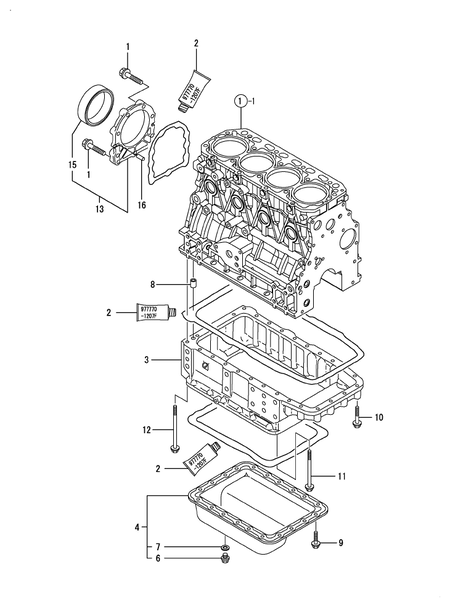

oil sump (4TNV88-XAT)
Back to Category List
Showing 14 Results
add to quantity
BOLT, M8X30
this part is not available for order at this time
add to quantity
BOLT, M8X30
this part is not available for order at this time
add to quantity
GASKET, LIQUID
this part is not available for order at this time
add to quantity
GASKET, LIQUID
this part is not available for order at this time
add to quantity
GASKET, LIQUID
this part is not available for order at this time
add to quantity
SUMP, OIL
this part is not available for order at this time
add to quantity
SUMP ASSY, OIL
this part is not available for order at this time
add to quantity
PLUG, 16
this part is not available for order at this time
add to quantity
WASHER, SEAL 16
this part is not available for order at this time
add to quantity
PIPE, KNOCK 14X18
this part is not available for order at this time
add to quantity
BOLT, M8X 12 PLATED
this part is not available for order at this time
add to quantity
BOLT, M8X 50 PLATED
this part is not available for order at this time
add to quantity
BOLT, M8X100 PLATED
this part is not available for order at this time
add to quantity
BOLT, M8X120 PLATED
this part is not available for order at this time
add to quantity
CASE ASSY, OIL SEAL
this part is not available for order at this time
add to quantity
SEAL, OIL
this part is not available for order at this time
add to quantity
PIN, M8X16
this part is not available for order at this time
Select your preferred dealer:
Products will be delivered from Yanmar, not the dealer.
1
BOLT, M8X30
129486-01670
Suggested price
$1.94
2
GASKET, LIQUID
New Part Number: TB1207FC
Old Part Number(s): 194855-24020, 977770-1207F, 977770-01212
Not for Sale Online
3
OIL PAN
New Part Number: 129550-01702
Old Part Number(s): 129550-01701
Out of Stock
4
OIL PAN ASSY
New Part Number: 729429-01721
Old Part Number(s): 129429-01720
Suggested price
$377.68
6
PLUG, DRAIN M16
New Part Number: 105425-01690
Old Part Number(s): 114299-01690, 104200-01690
Suggested price
$3.75
7
WASHER, SEAL 16
New Part Number: 22190-160002
Old Part Number(s): 43400-500490
Minimum Sales Quantity: 10
Not for Sale Online
8
PIPE, KNOCK 14X19
129555-01750
Out of Stock
9
BOLT, M8X 12 PLATED
26106-080122
Minimum Sales Quantity: 10
Not for Sale Online
10
BOLT, M8X 50 PLATED
26106-080502
Minimum Sales Quantity: 10
Suggested price
$1.71 / $17.10
11
BOLT, M8X100 PLATED
New Part Number: 26106-081002
Old Part Number(s): 129001-91870
Minimum Sales Quantity: 10
Suggested price
$1.29 / $12.90
12
BOLT, M8X120 PLATED
New Part Number: 26106-081202
Old Part Number(s): 129001-91910
Minimum Sales Quantity: 10
Suggested price
$1.96 / $19.60
13
CASE ASSY, OIL SEAL
New Part Number: 729402-01650
Old Part Number(s): 129150-01650, 129100-01640
Suggested price
$159.51
15
SEAL, OIL
New Part Number: 129120-01780
Old Part Number(s): 129795-01780
Suggested price
$14.77
16
PIN, PARALLEL 8X16
New Part Number: 129100-01580
Old Part Number(s): 22312-080160
Suggested price
$2.12
