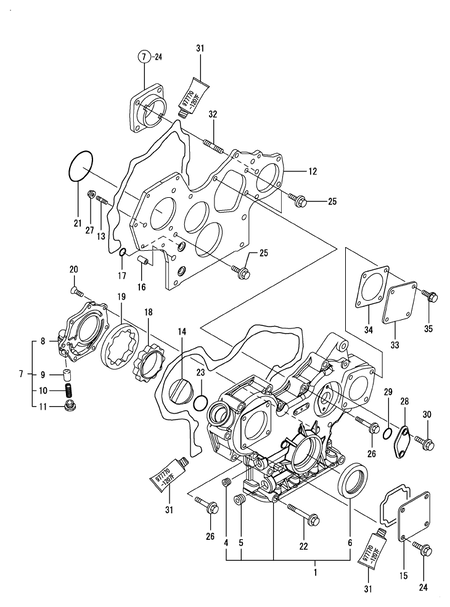

gear housing (4TNV88-XAT)
Back to Category List
Showing 31 Results
add to quantity
CASE ASSY, GEAR
this part is not available for order at this time
add to quantity
PLUG, R03
this part is not available for order at this time
add to quantity
PLUG, R04
this part is not available for order at this time
add to quantity
SEAL, OIL
this part is not available for order at this time
add to quantity
COVER ASSY
this part is not available for order at this time
add to quantity
COVER
this part is not available for order at this time
add to quantity
VALVE, RELIEF
this part is not available for order at this time
add to quantity
SPRING
this part is not available for order at this time
add to quantity
PLUG
this part is not available for order at this time
add to quantity
FLANGE, GEAR CASE
this part is not available for order at this time
add to quantity
STUD, M8X25
this part is not available for order at this time
add to quantity
COVER, FILLER
this part is not available for order at this time
add to quantity
COVER
this part is not available for order at this time
add to quantity
PIPE, KNOCK L=18
this part is not available for order at this time
add to quantity
O-RING, P16
this part is not available for order at this time
add to quantity
ROTOR, INNER
this part is not available for order at this time
add to quantity
ROTOR, OUTER
this part is not available for order at this time
add to quantity
SCREW, M6X16
this part is not available for order at this time
add to quantity
O-RING
this part is not available for order at this time
add to quantity
BOLT, M8X 85 PLATED
this part is not available for order at this time
add to quantity
O-RING, 1AP32.0
this part is not available for order at this time
add to quantity
BOLT, M8X 16 PLATED
this part is not available for order at this time
add to quantity
BOLT, M8X 55 PLATED
this part is not available for order at this time
add to quantity
BOLT, M8X 55 PLATED
this part is not available for order at this time
add to quantity
NUT, M8
this part is not available for order at this time
add to quantity
COVER, TACHOMETER
this part is not available for order at this time
add to quantity
O-RING, 1AS24.0
this part is not available for order at this time
add to quantity
BOLT, M6X 16 PLATED
this part is not available for order at this time
add to quantity
GASKET, LIQUID
this part is not available for order at this time
add to quantity
GASKET, LIQUID
this part is not available for order at this time
add to quantity
GASKET, LIQUID
this part is not available for order at this time
add to quantity
STUD, M8X30
this part is not available for order at this time
add to quantity
GASKET
this part is not available for order at this time
add to quantity
BOLT, M8X 12 PLATED
this part is not available for order at this time
Select your preferred dealer:
Products will be delivered from Yanmar, not the dealer.
1
CASE ASSY, GEAR
729004-01500
Suggested price
$520.71
4
PLUG, R03
23876-030000
Suggested price
$5.67
5
PLUG, R04
23876-040000
Suggested price
$5.88
6
SEAL, OIL
129795-01800
Suggested price
$13.71
7
COVER ASSY, PUMP
119802-32100
Suggested price
$140.16
8
COVER, OIL PUMP
119802-32070
Suggested price
$130.20
9
VALVE, RELIEF
129900-32130
Suggested price
$14.92
10
SPRING
129418-32320
Suggested price
$6.58
11
PLUG
New Part Number: 129001-32330
Old Part Number(s): 129001-32130
Suggested price
$6.42
12
FLANGE, GEAR CASE
129004-01520
Out of Stock
13
STUD, M8X25
New Part Number: 119802-01561
Old Part Number(s): 119802-01560
Suggested price
$2.92
14
CAP, FILLER
New Part Number: 124160-01751
Old Part Number(s): 124160-01750, 124722-11730
Suggested price
$9.49
15
COVER,HYDRAULIC PUMP
New Part Number: 124240-01871
Old Part Number(s): 124240-01870
Suggested price
$7.94
16
PIPE, KNOCK L=18
129795-01950
Suggested price
$6.96
17
O-RING, P16
119609-32040
Suggested price
$2.12
18
ROTOR, INNER
119802-32111
Suggested price
$68.26
19
ROTOR, OUTER
119802-32120
Suggested price
$70.46
20
SCREW, M6X16
119802-32130
Suggested price
$1.37
21
O-RING, FUEL PUMP
121850-51960
Suggested price
$3.02
22
BOLT, M8X 85 PLATED
New Part Number: 26106-080852
Old Part Number(s): 26106-080822, 129001-91841, 129001-91840
Minimum Sales Quantity: 10
Suggested price
$1.71 / $17.10
23
O-RING, 1AP32.0
24311-000320
Minimum Sales Quantity: 10
Suggested price
$2.12 / $21.20
24
BOLT, M8X 16 PLATED
New Part Number: 26106-080162
Old Part Number(s): 26106-080152, 26011-080162, 26107-080162
Minimum Sales Quantity: 10
Suggested price
$1.37 / $13.70
26
BOLT, M8X 55 PLATED
26106-080552
Minimum Sales Quantity: 10
Suggested price
$1.71 / $17.10
27
NUT, M8
26306-080002
Suggested price
$1.06
28
COVER, TACHOMETER
New Part Number: 121023-01551
Old Part Number(s): 121023-01550
Suggested price
$13.36
29
O-RING, 1AS24.0
24341-000240
Minimum Sales Quantity: 10
Suggested price
$1.77 / $17.70
30
BOLT, M6X 16 PLATED
26106-060162
Minimum Sales Quantity: 10
Not for Sale Online
31
GASKET, LIQUID
New Part Number: TB1207FC
Old Part Number(s): 194855-24020, 977770-1207F, 977770-01212
Not for Sale Online
32
BOLT, PUMP M8X30
129150-01580
Suggested price
$2.61
34
GASKET, PUMP
New Part Number: 124240-01883
Old Part Number(s): 124240-01882, 124240-01881, 124240-01880
Suggested price
$3.02
35
BOLT, M8X 12 PLATED
26106-080122
Minimum Sales Quantity: 10
Not for Sale Online
