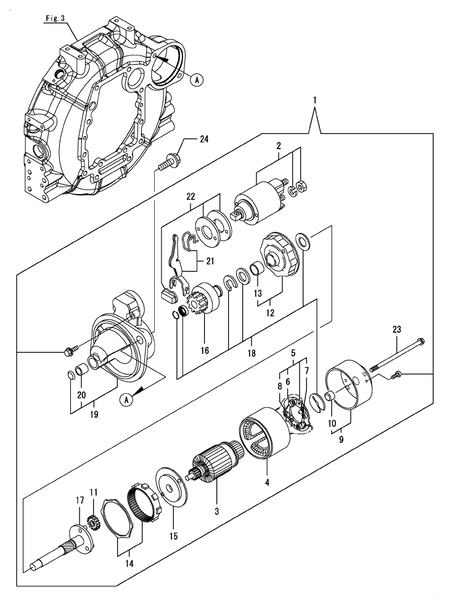

starter motor (3TNV88C-DTR3)
Back to Category List
Showing 24 Results
add to quantity
STARTER, 1.7
this part is not available for order at this time
add to quantity
SWITCH ASSY, MAGNET
this part is not available for order at this time
add to quantity
ARMATURE ASSY
this part is not available for order at this time
add to quantity
YOKE ASSY
this part is not available for order at this time
add to quantity
HOLDER ASSY, BRUSH
this part is not available for order at this time
add to quantity
BRUSH, -
this part is not available for order at this time
add to quantity
BRUSH SET
this part is not available for order at this time
add to quantity
SPRING, BRUSH
this part is not available for order at this time
add to quantity
COVER ASSY, STARTER
this part is not available for order at this time
add to quantity
BEARING, REAR COVER
this part is not available for order at this time
add to quantity
GEAR, PLANETARY
this part is not available for order at this time
add to quantity
BRACKET, CENTER P
this part is not available for order at this time
add to quantity
BRACKET, CENTER
this part is not available for order at this time
add to quantity
GEAR, INTERNAL
this part is not available for order at this time
add to quantity
BRACKET, CENTER A
this part is not available for order at this time
add to quantity
PINION ASSY
this part is not available for order at this time
add to quantity
SHAFT, PINION
this part is not available for order at this time
add to quantity
WASHER SET
this part is not available for order at this time
add to quantity
CASE ASSY, GEAR
this part is not available for order at this time
add to quantity
METAL, STARTER
this part is not available for order at this time
add to quantity
LEVER SET, SHIFT
this part is not available for order at this time
add to quantity
COVER KIT, DUST
this part is not available for order at this time
add to quantity
BOLT, THROUGH
this part is not available for order at this time
add to quantity
BOLT, M12X 25 PLATED
this part is not available for order at this time
Select your preferred dealer:
Products will be delivered from Yanmar, not the dealer.
1
STARTER, 1.7
129242-77010
Suggested price
$659.59
2
SWITCH ASSY, MAGNET
New Part Number: 129698-77020
Old Part Number(s): 114298-77020, 124298-77020
Suggested price
$219.71
3
ARMATURE ASSY
129242-77100
Out of Stock
4
YOKE ASSY
129242-77110
Out of Stock
5
HOLDER ASSY, BRUSH
129242-77120
Suggested price
$77.46
6
BRUSH, -
129242-77130
Out of Stock
7
BRUSH SET
129242-77140
Suggested price
$22.99
8
SPRING, BRUSH
129242-77150
Out of Stock
9
COVER ASSY, STARTER
129242-77160
Out of Stock
10
BEARING, REAR COVER
New Part Number: 129698-77170
Old Part Number(s): 119233-77510, 129242-77170
Out of Stock
11
GEAR, PLANETARY
New Part Number: 118400-77170
Old Part Number(s): 129698-77240, 119233-77600
Out of Stock
12
BRACKET, CENTER P
129242-77180
Out of Stock
13
BRACKET, CENTER
New Part Number: 129698-77190
Old Part Number(s): 119233-77630
Suggested price
$16.70
14
GEAR, INTERNAL
New Part Number: 129698-77200
Old Part Number(s): 119233-77640
Suggested price
$58.81
15
BRACKET, CENTER A
129242-77210
Out of Stock
16
PINION ASSY
129698-77220
Suggested price
$138.70
17
SHAFT, PINION
New Part Number: 129698-77230
Old Part Number(s): 119233-77670
Out of Stock
18
WASHER SET
New Part Number: 129698-77250
Old Part Number(s): 119233-77610
Out of Stock
19
CASE ASSY, GEAR
129242-77260
Out of Stock
20
METAL, STARTER
New Part Number: X2114535200
Old Part Number(s): X21145352
Suggested price
$6.11
21
LEVER SET, SHIFT
129242-77270
Out of Stock
22
COVER KIT, DUST
129242-77280
Out of Stock
23
BOLT, THROUGH
New Part Number: 119260-77260
Old Part Number(s): 124195-77770, X2114680050, X211468005
Not for Sale Online
24
BOLT, M12X 25 PLATED
New Part Number: 26106-120252
Old Part Number(s): 1A8060-10870
Minimum Sales Quantity: 10
Suggested price
$1.96 / $19.60
