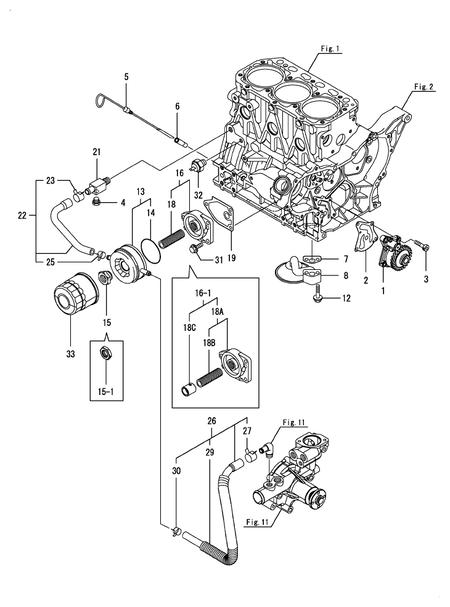

lub. oil system (3TNV88C-DTR3)
Back to Category List
Showing 28 Results
add to quantity
PUMP ASSY, OIL
this part is not available for order at this time
add to quantity
GASKET, PUMP
this part is not available for order at this time
add to quantity
BOLT, M6X 25
this part is not available for order at this time
add to quantity
PLUG, DRAIN R1/4
this part is not available for order at this time
add to quantity
DIPSTICK, OIL
this part is not available for order at this time
add to quantity
GUIDE, DIPSTICK
this part is not available for order at this time
add to quantity
GASKET, INLET PIPE
this part is not available for order at this time
add to quantity
PIPE ASSY, OIL INLET
this part is not available for order at this time
add to quantity
BOLT, M8X 35 PLATED
this part is not available for order at this time
add to quantity
COOLER ASSY, OIL
this part is not available for order at this time
add to quantity
O-RING
this part is not available for order at this time
add to quantity
NUT, OIL COOLER
this part is not available for order at this time
add to quantity
NUT, M20
this part is not available for order at this time
add to quantity
BRACKET ASSY, FILTER
this part is not available for order at this time
add to quantity
BRACKET ASSY,LO FILT
this part is not available for order at this time
add to quantity
STUD, M20X67
this part is not available for order at this time
add to quantity
BRACKET ASSY, FILTER
this part is not available for order at this time
add to quantity
COLLAR, OIL-COOLER
this part is not available for order at this time
add to quantity
GASKET, BRACKET
this part is not available for order at this time
add to quantity
JOINT, R02
this part is not available for order at this time
add to quantity
HOSE ASSY, COOLER IN
this part is not available for order at this time
add to quantity
CLAMP, HOSE 18.5
this part is not available for order at this time
add to quantity
CLAMP, 15
this part is not available for order at this time
add to quantity
HOSE ASSY,COOLER OUT
this part is not available for order at this time
add to quantity
TUBE, CORRUGATED 19
this part is not available for order at this time
add to quantity
BOLT, M8X 20 PLATED
this part is not available for order at this time
add to quantity
SWITCH, HYDRAULIC
this part is not available for order at this time
add to quantity
FILTER ASSY, D80X80L
this part is not available for order at this time
Select your preferred dealer:
Products will be delivered from Yanmar, not the dealer.
1
PUMP ASSY, OIL
129A00-32000
Suggested price
$249.37
2
GASKET, PUMP
129486-32020
Suggested price
$2.31
3
BOLT, M6X 25
26450-060252
Minimum Sales Quantity: 10
Suggested price
$1.51 / $15.10
4
PLUG, DRAIN R1/4
171056-49120
Suggested price
$18.82
5
DIPSTICK, OIL
New Part Number: 129005-34802
Old Part Number(s): 129005-34801
Suggested price
$63.16
6
GUIDE, DIPSTICK
121520-34810
Suggested price
$8.32
7
GASKET, INLET PIPE
New Part Number: 129150-35042
Old Part Number(s): 129150-35040, 129150-35041
Suggested price
$2.45
8
PIPE ASSY, OIL INLET
129150-35091
Suggested price
$39.21
12
BOLT, M8X 35 PLATED
26106-080352
Minimum Sales Quantity: 10
Suggested price
$1.57 / $15.70
13
COOLER ASSY, OIL
New Part Number: 129508-33010
Old Part Number(s): 129508-33030
Not for Sale Online
14
O-RING
129508-33050
Suggested price
$17.30
15
NUT, OIL COOLER
New Part Number: 129417-33111
Old Part Number(s): 129417-33110
Suggested price
$21.11
16
BRACKET ASSY, FILTER
New Part Number: 129006-35100-9
Old Part Number(s): 129006-35100
Not for Sale Online
19
GASKET, BRACKET
New Part Number: 129150-35111
Old Part Number(s): 129150-35110
Suggested price
$2.82
21
JOINT, R02
129006-44480
Suggested price
$64.00
22
HOSE ASSY, COOLER IN
129508-49030
Suggested price
$39.03
23
CLAMP, HOSE 18.5
New Part Number: 171008-03990
Old Part Number(s): 23080-019000
Suggested price
$2.75
25
CLAMP, 15
23080-015000
Suggested price
$5.28
26
HOSE ASSY,COOLER OUT
129006-49040
Suggested price
$28.36
29
TUBE, CORRUGATED 19
129642-49180
Suggested price
$14.46
31
BOLT, M8X 20 PLATED
New Part Number: 26106-080202
Old Part Number(s): 1W0108-09003, 160610-04150
Minimum Sales Quantity: 10
Suggested price
$1.37 / $13.70
32
SWITCH, HYDRAULIC
119761-39450
Suggested price
$8.26
33
FILTER ASSY, D80X80L
New Part Number: 129150-35153
Old Part Number(s): 129150-35151, 129150-35150, 129150-35152, 129150-35160
Suggested price
$9.59
